TX/RX Downlink Formats Mode S and Mode A/C

TX/RX Uplink Formats Modes S and Mode A/C Interrogation

Four Port Antenna Simulation

RF Output Phase: 0 -359 Degrees (4 Port)

RF Output Power: -20 to -90 dBm

Simulates Dynamic (28) and Static (400) Aircraft

ADS-B Squitters

Receiver: 40 dB Dynamic Range

Receiver Detects External RF and Internal Tx

Receiver Data Logging and Timestamp

User Defined Downlink/Uplink Formats

USB 2.0/GPIB/LAN Interface to PC

115/230 VAC, 50/60 Hz

19 Inch Rack Mountable Panel

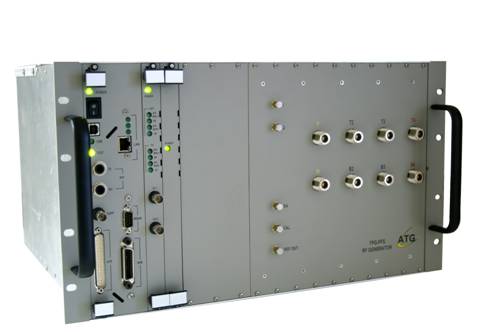

Data Sheet for the TPG-TPL
